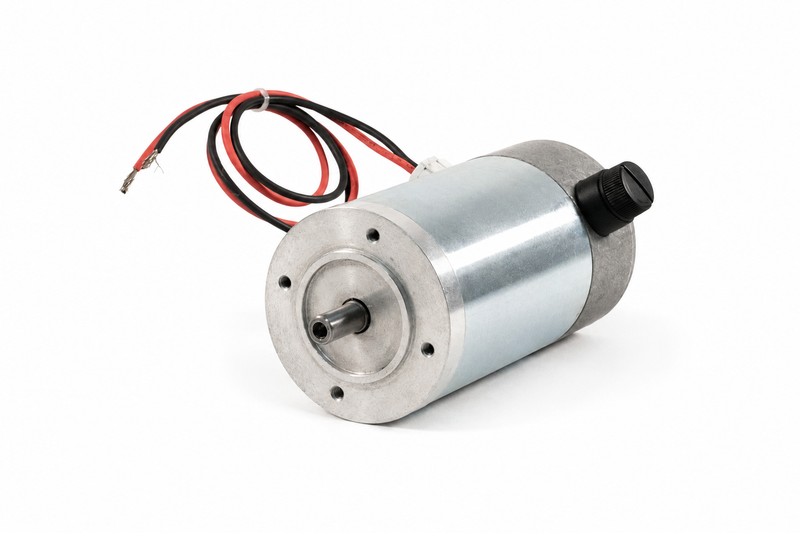

24V 210W 2600 RPM Electric Motor, Mec63 B14 S2 U Series

U Series permanent-magnet DC electric motor, MEC63 construction with B14 flange. Manufactured by Elip Tagliente.

Technical data

• Rated voltage: 24 V DC
• Power: 210 W
• Speed: 2600 RPM
• Rated torque: 0,72 Nm
• Current draw: 11,30 A
• Frame size: MEC63
• Flange: B14
• Series: U

Available configurations

• Standard S2 duty
• Ventilated continuous S1 duty, with a €30.00 surcharge
• Standard output with pins; output cables or a terminal block are also available at no extra charge

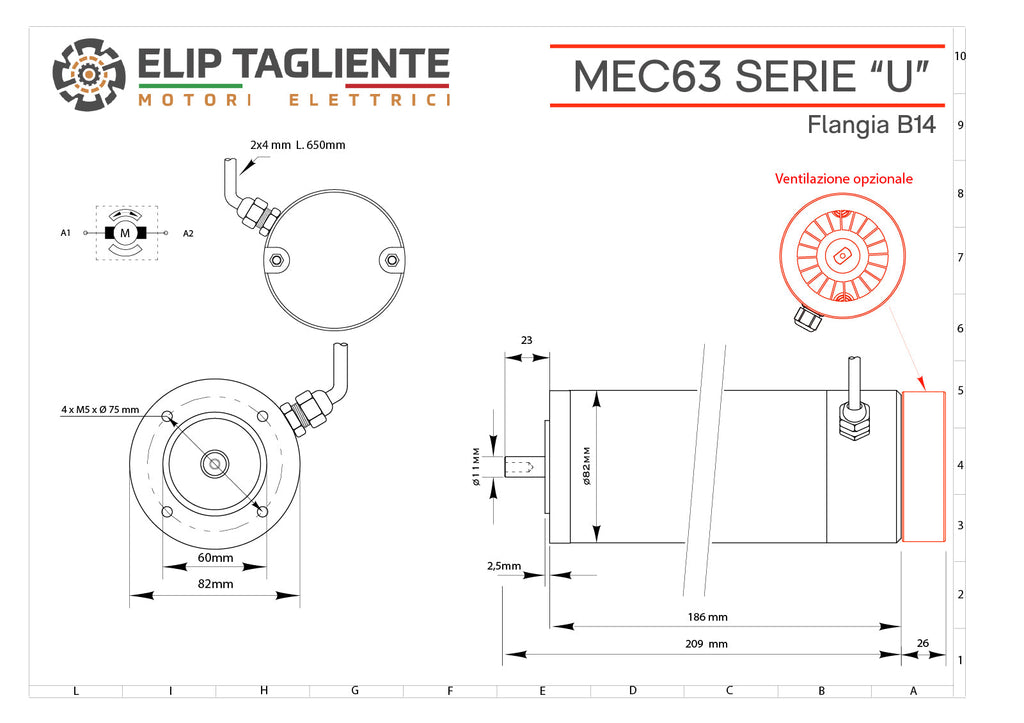

The attached technical drawing identifies the dimensions and provisions of this specific configuration.
