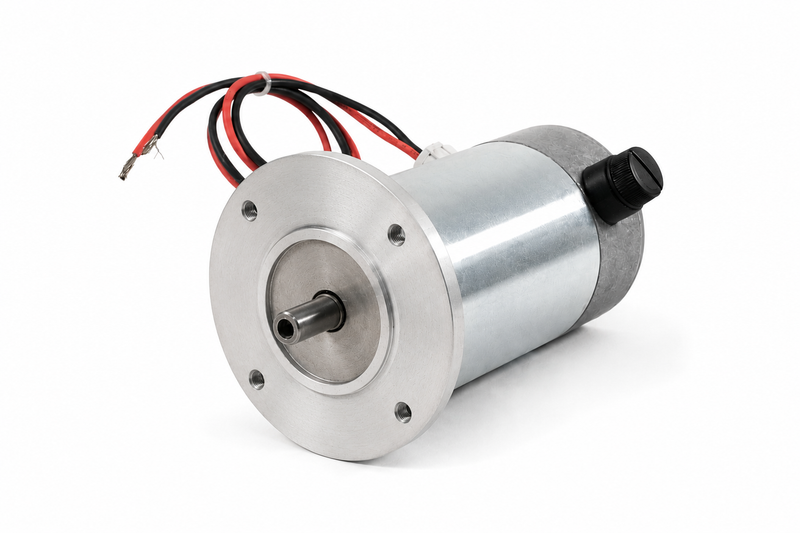

24V 120W 1500RPM ELECTRIC MOTOR Mec63 B5 S2 U Series

U-Series permanent magnet DC electric motor, MEC63 construction with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 24 V DC
• Power: 120 W
• Speed: 1500 RPM
• Rated torque: 0.76 Nm
• Current draw: 6.50 A
• Size: MEC63
• Flange: B5
• Series: U

Available configurations

• Standard S2 duty
• Continuous S1 ventilated duty, with a surcharge of €30.00
• Standard output with pins; output cables or terminal block also available at no extra charge

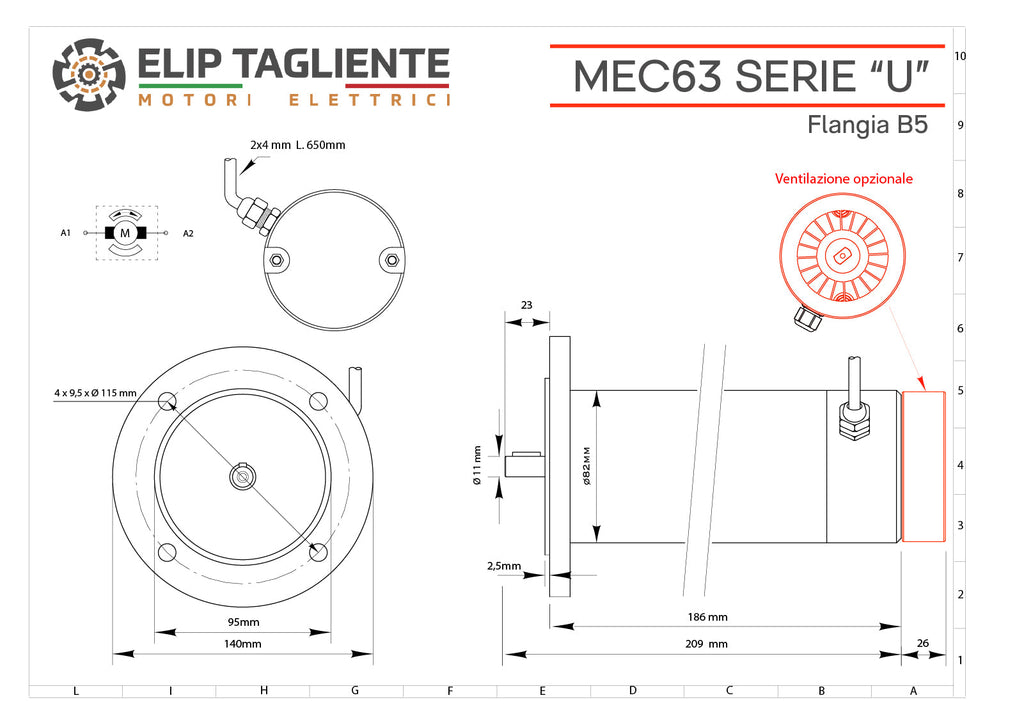

The attached technical drawing identifies dimensions and mounting arrangements for this specific construction.
