ELECTRIC MOTOR 12V 160W 2000Rpm Mec56 B14 S2 U Series

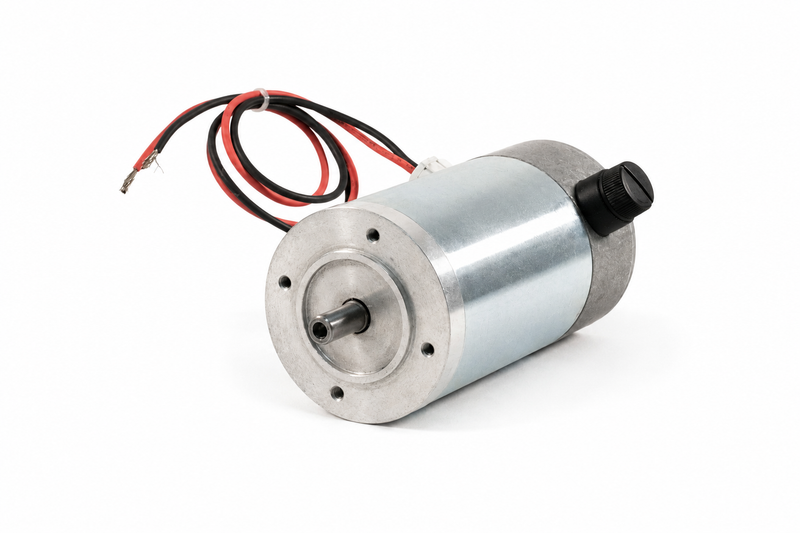

U-Series permanent magnet DC electric motor, MEC56 construction with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 12 V DC
• Power: 160 W
• Speed: 2000 RPM
• Rated torque: 0.76 Nm
• Current draw: 17.30 A
• Size: MEC56
• Flange: B14
• Series: U

Available configurations

• Standard S2 duty
• Continuous S1 duty with fan, for an additional €30.00
• Standard output with pins; lead wires or terminal block also available at no extra cost

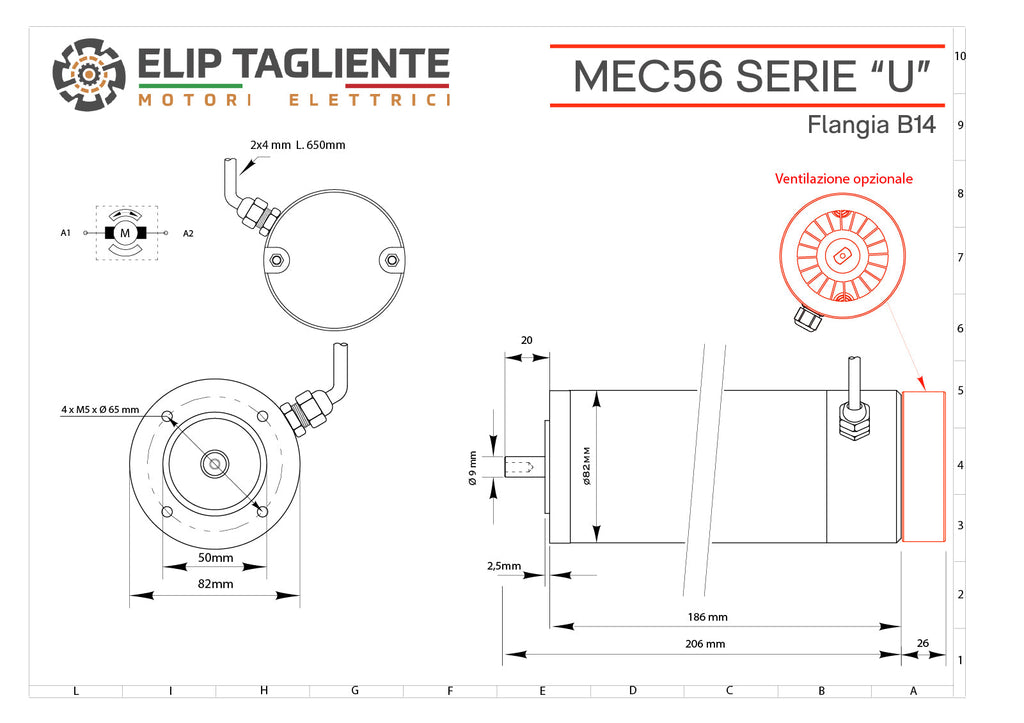

The attached technical drawing shows the dimensions and provisions of the specific construction.
