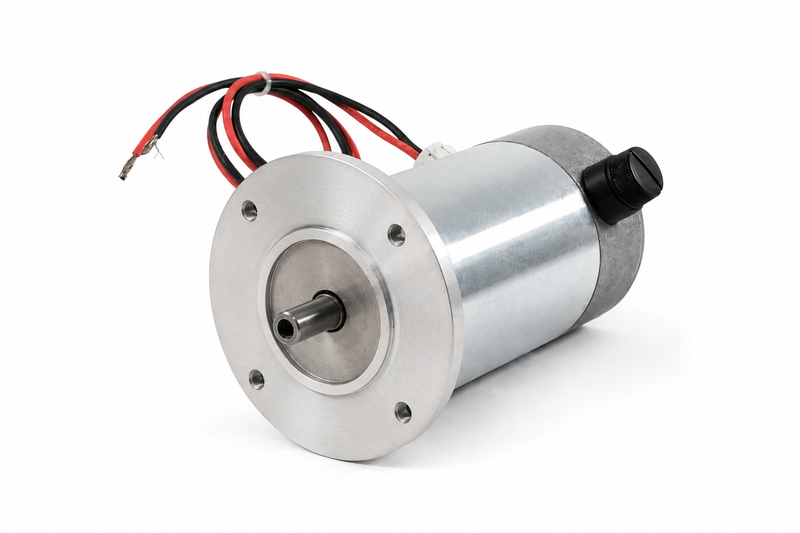

24V 60W 1500RPM ELECTRIC MOTOR Mec63 B5 S2 T Series

T-Series permanent magnet DC electric motor, MEC63 construction with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 24 V DC
• Power: 60 W
• Speed: 1500 RPM
• Rated torque: 0.38 Nm
• Current draw: 3.25 A
• Frame size: MEC63
• Flange: B5
• Series: T

Available configurations

• Standard S2 duty
• S1 continuous duty with ventilation, at an additional cost of €30.00
• Standard output with pins; output cables or terminal block also available at no extra cost

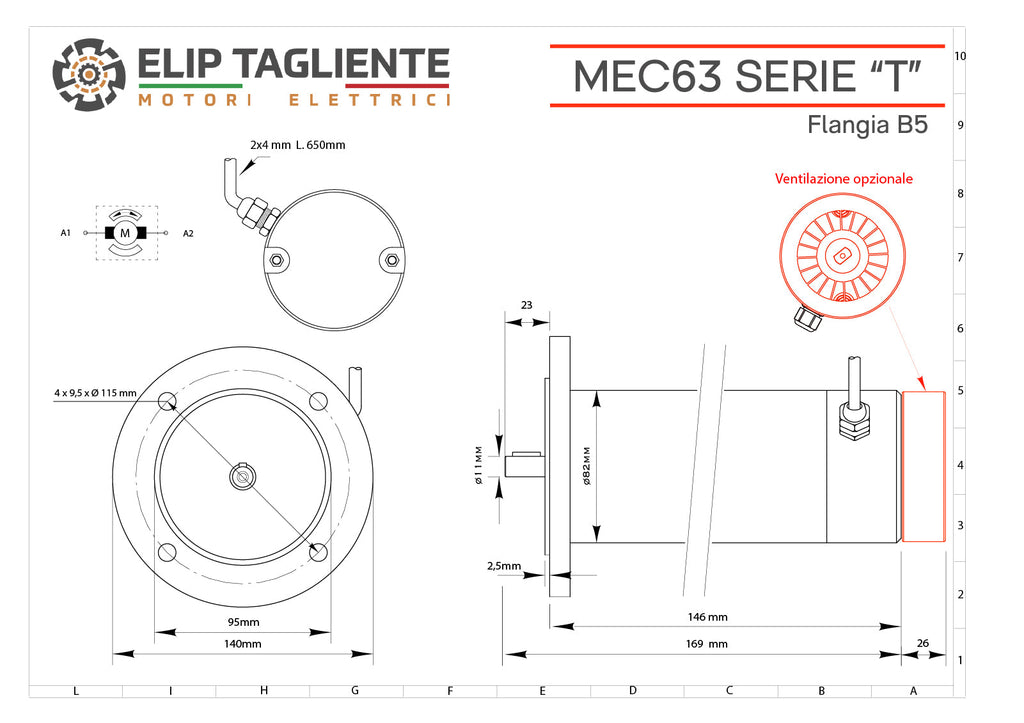

The attached technical drawing identifies dimensions and configurations for this specific build.
