ELECTRIC MOTOR 180V 60W 1500RPM MEC63 B5 S2 T SERIES

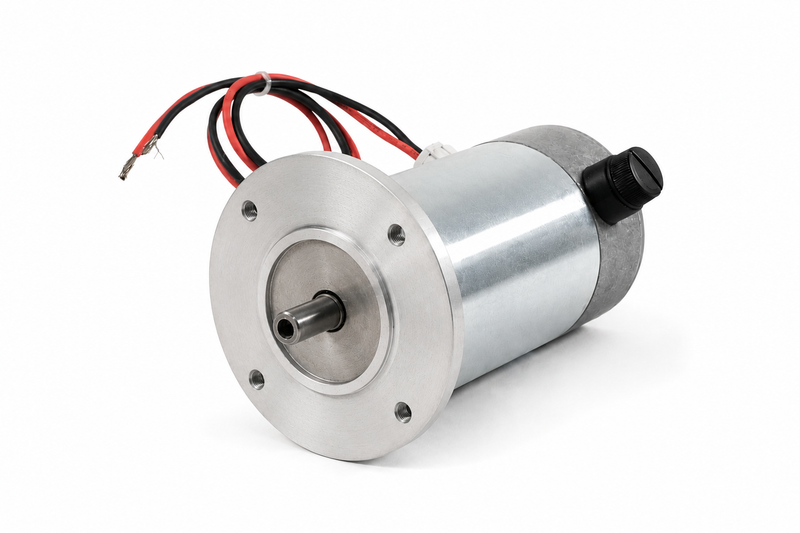

T-Series permanent magnet DC electric motor, MEC63 frame with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 180 V DC
• Power: 60 W
• Speed: 1500 RPM
• Rated torque: 0.38 Nm
• Current consumption: 0.40 A
• Frame size: MEC63
• Flange: B5
• Series: T

Available configurations

• Standard S2 duty
• Continuous S1 ventilated duty, with a surcharge of €30.00
• Standard output with pins; output cables or terminal block also available at no extra cost

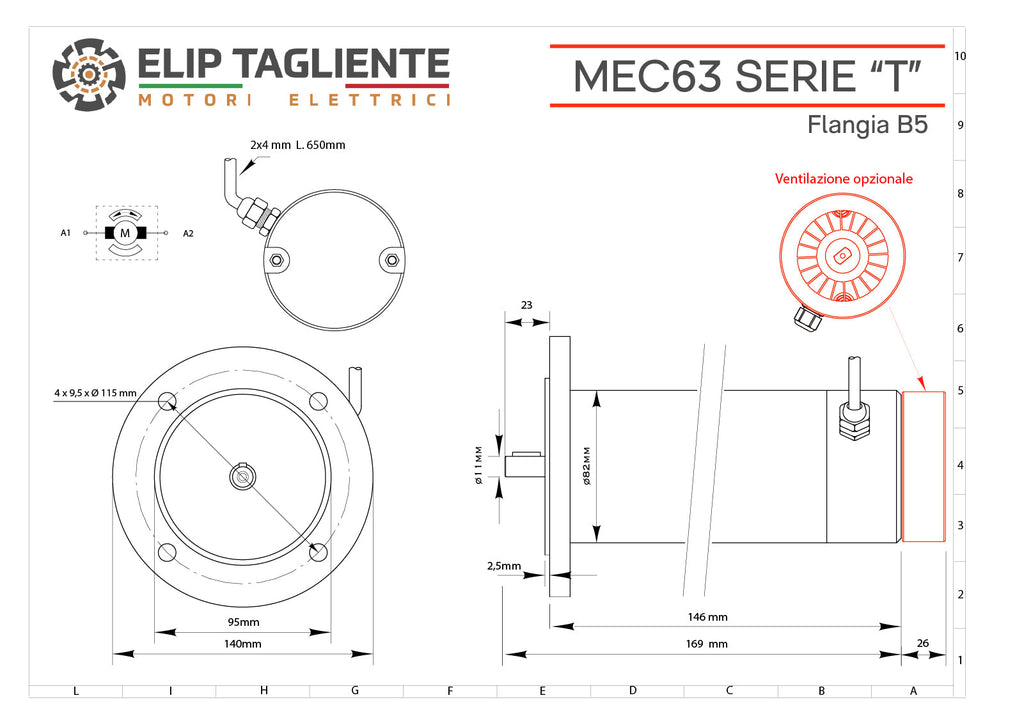

The attached technical drawing shows the dimensions and configurations for this specific build.
