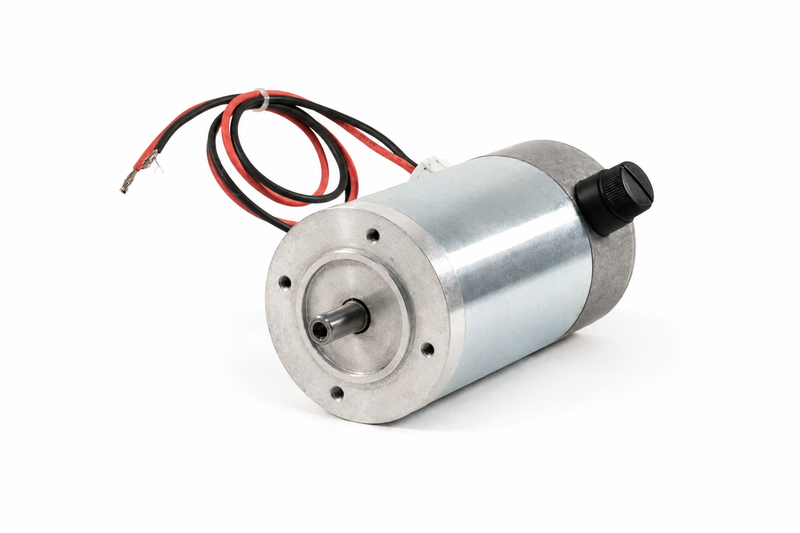

180V 60W 1500RPM ELECTRIC MOTOR MEC56 B14 S2 T SERIES

T-Series permanent magnet DC electric motor, MEC56 frame with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 180 V DC
• Power: 60 W
• Speed: 1500 RPM
• Rated torque: 0.38 Nm
• Current draw: 0.40 A
• Frame size: MEC56
• Flange: B14
• Series: T

Available configurations

• Standard S2 duty
• S1 continuous duty ventilated, with a €30.00 surcharge
• Standard pin output; output cables or terminal block also available at no extra charge

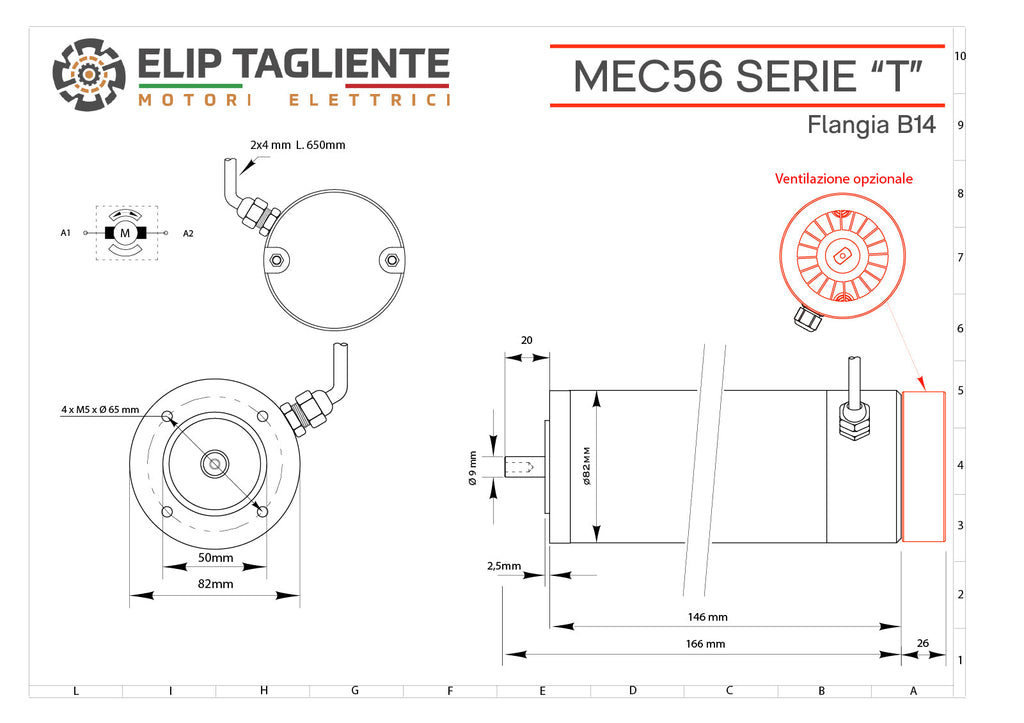

The attached technical drawing identifies the overall dimensions and specifications of the construction.
