48V 940W 3200RPM ELECTRIC MOTOR Mec80 B5 S2 M Series

M-series permanent magnet DC electric motor, MEC80 frame with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 48 V DC
• Power: 940 W
• Speed: 3200 RPM
• Rated torque: 2.81 Nm
• Current draw: 25.40 A
• Frame size: MEC80
• Flange: B5
• Series: M

Available configurations

• Standard S2 duty
• S1 continuous duty ventilated, with a €30.00 surcharge
• Standard output with pins; cable output or terminal block also available at no extra cost

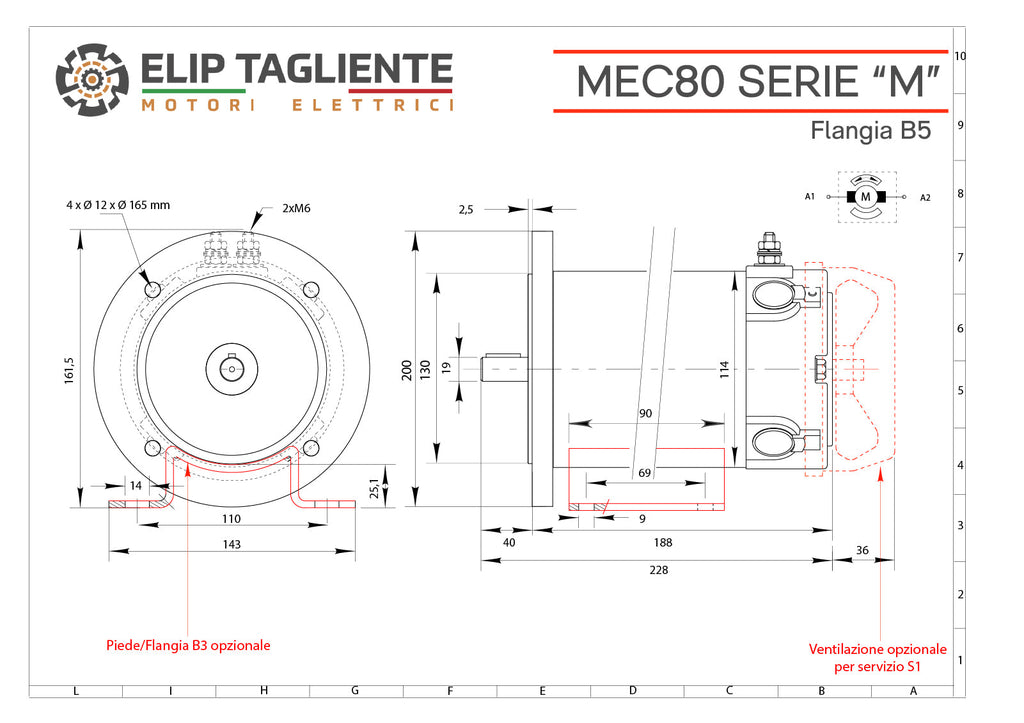

The attached technical drawing identifies the overall dimensions and configurations of this specific build.
