48V 820W 2800Rpm ELECTRIC MOTOR Mec80 B5 S2 M Series

M-series permanent magnet DC electric motor, MEC80 frame size with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 48 V DC
• Power: 820 W
• Speed: 2800 RPM
• Rated torque: 2.80 Nm
• Current consumption: 22.20 A
• Frame size: MEC80
• Flange: B5
• Series: M

Available configurations

• Standard S2 duty
• Ventilated S1 continuous duty, with a €30.00 surcharge
• Standard output with pins; cable output or terminal block also available at no extra cost

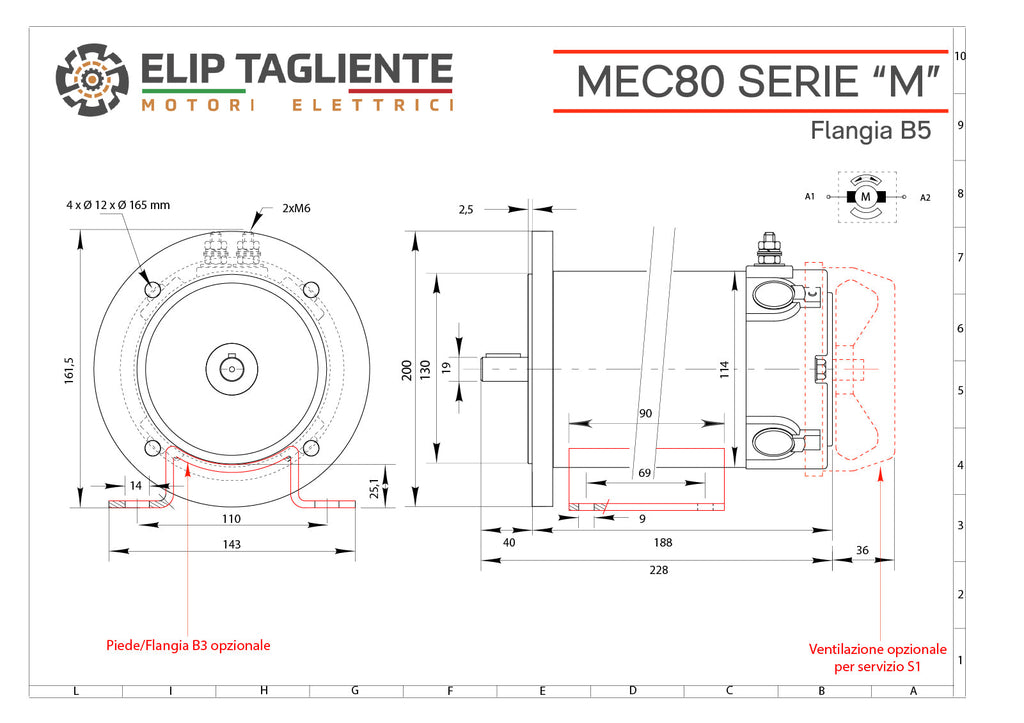

The attached technical drawing specifies the dimensions and mounting features of this specific build.
