48V 550W 1900Rpm ELECTRIC MOTOR Mec71 B14 S2 M Series

M-Series permanent magnet DC electric motor, MEC71 construction with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 48 V DC
• Power: 550 W
• Speed: 1900 RPM
• Rated torque: 2.75 Nm
• Current draw: 14.40 A
• Frame size: MEC71
• Flange: B14
• Series: M

Available configurations

• Standard S2 duty
• Ventilated continuous S1 duty, with a €30.00 surcharge
• Standard output with pins; output cables or terminal block also available at no extra charge

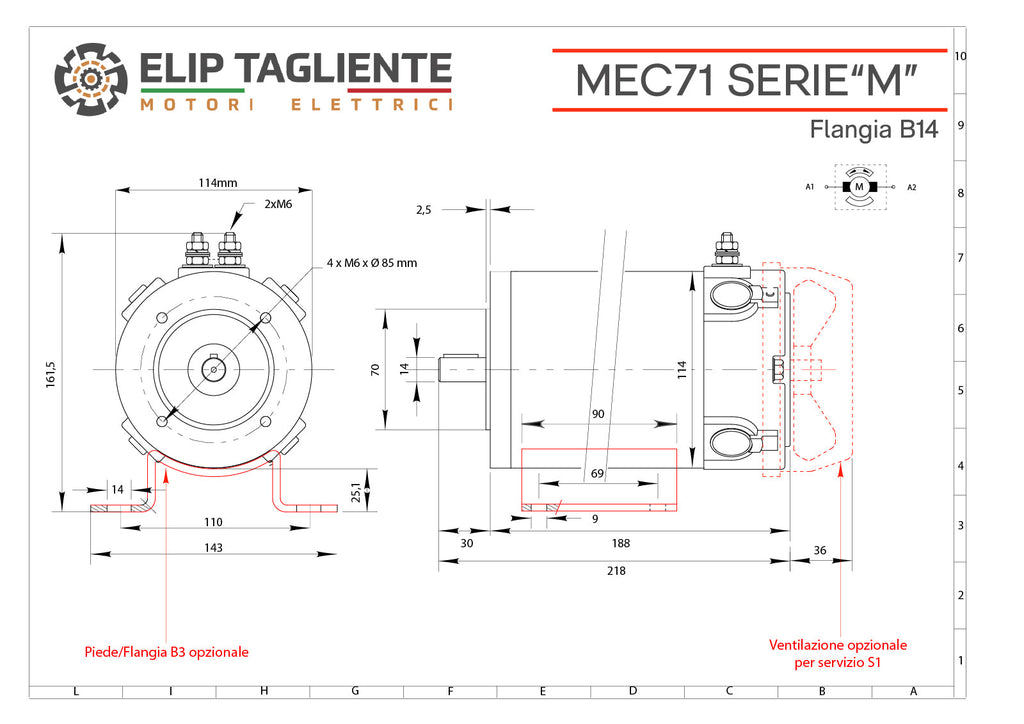

The attached technical drawing identifies the dimensions and mounting specifications of this particular build.
