48V 550W 1900Rpm ELECTRIC MOTOR Mec63 B5 S2 M Series

M-series permanent magnet DC electric motor, MEC63 frame with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 48 V DC
• Power: 550 W
• Speed: 1900 RPM
• Rated torque: 2.75 Nm
• Current draw: 14.40 A
• Frame size: MEC63
• Flange: B5
• Series: M

Available configurations

• Standard S2 duty
• Ventilated S1 continuous duty, with a €30.00 surcharge
• Standard output with pins; output cables or terminal block also available at no extra cost

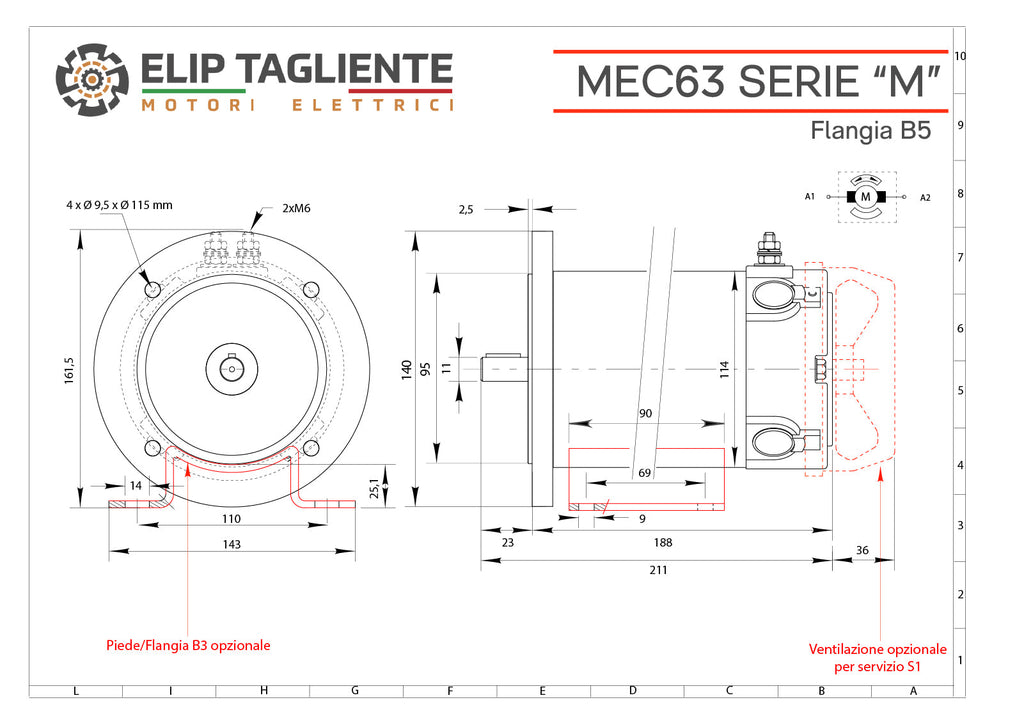

The attached technical drawing identifies dimensions and mounting configurations for this specific build.
