ELECTRIC MOTOR 48V 440W 1500Rpm Mec90 B5 S2 M Series

M-series permanent magnet DC electric motor, MEC90 construction with B5 flange. Manufactured by Elip Tagliente.

Technical data sheet

• Rated voltage: 48 V DC
• Power: 440 W
• Speed: 1500 RPM
• Rated torque: 2.80 Nm
• Current draw: 11.90 A
• Frame size: MEC90
• Flange: B5
• Series: M

Available configurations

• Standard S2 duty
• Ventilated continuous S1 duty, with an additional charge of €30.00
• Standard output with pins; output cables or terminal block also available at no extra charge

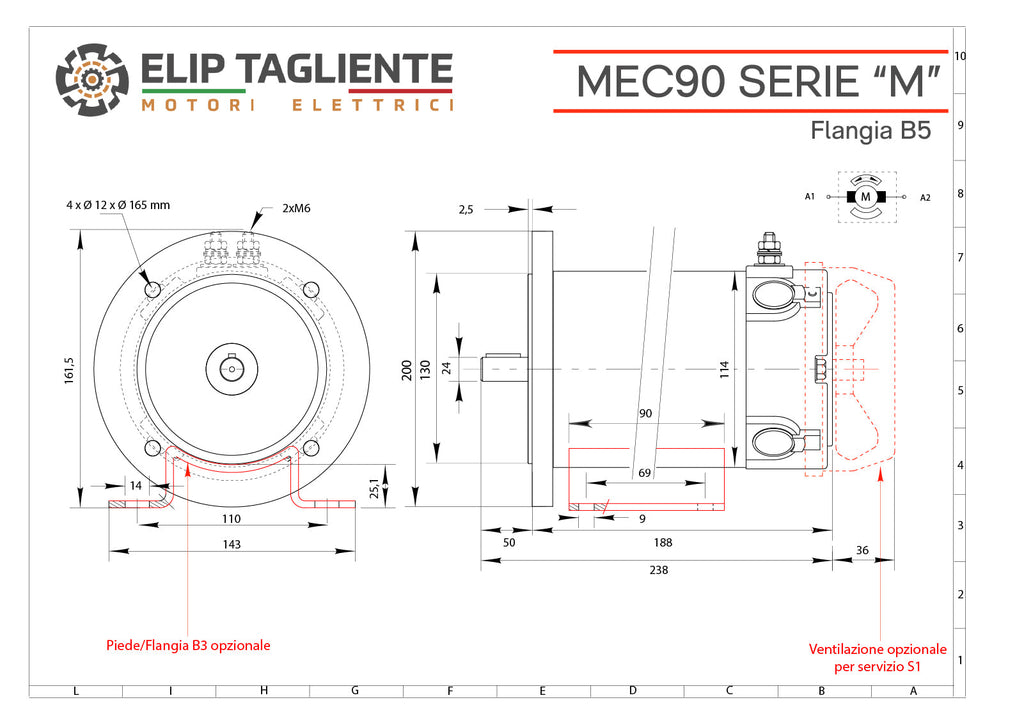

The attached technical drawing identifies the dimensions and mounting arrangements of the specific construction.
