36V 550W 1900Rpm ELECTRIC MOTOR Mec71 B14 S2 M Series

M-series permanent magnet DC electric motor, MEC71 frame with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 36 V DC
• Power: 550 W
• Speed: 1900 RPM
• Rated torque: 2.75 Nm
• Current consumption: 19.80 A
• Frame size: MEC71
• Flange: B14
• Series: M

Available configurations

• Standard S2 duty
• S1 continuous duty, ventilated, with a €30.00 surcharge
• Standard output with terminals; cable output or terminal board also available at no extra cost

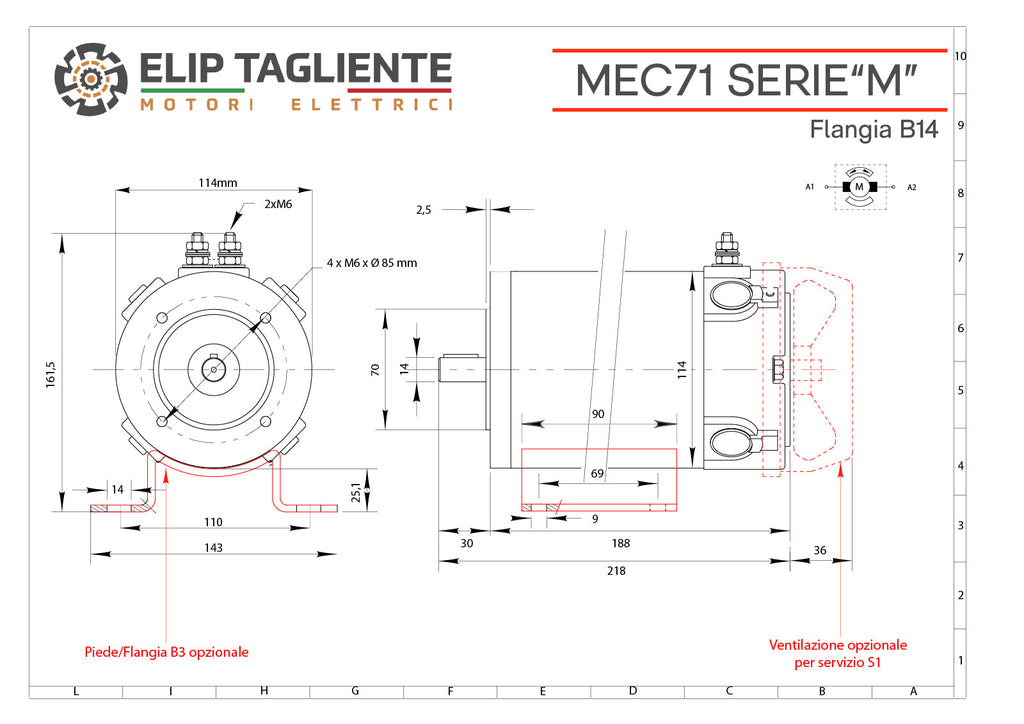

The attached technical drawing identifies the dimensions and configuration of this specific build.
