24V 820W 2800RPM ELECTRIC MOTOR MEC90 B5 S2 M SERIES

M-series permanent magnet DC electric motor, MEC90 construction with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 24 V DC
• Power: 820 W
• Speed: 2800 RPM
• Rated torque: 2.80 Nm
• Current consumption: 44.40 A
• Size: MEC90
• Flange: B5
• Series: M

Available configurations

• Standard S2 duty
• Ventilated continuous S1 duty, with an additional charge of €30.00
• Standard output with pins; cable output or terminal block also available at no extra charge

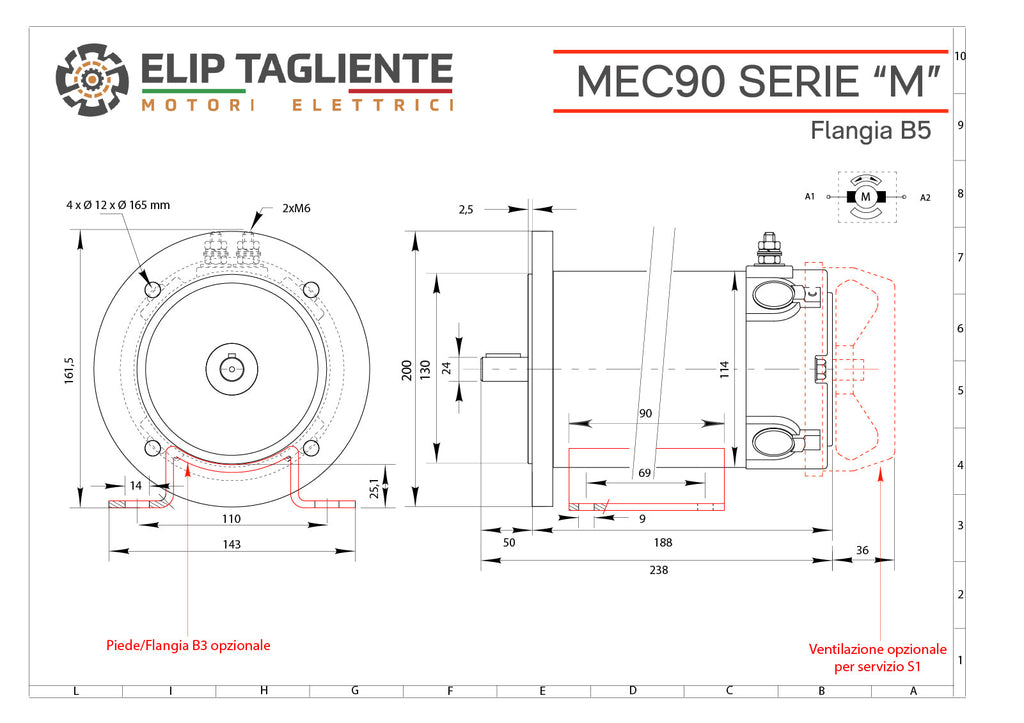

The attached technical drawing identifies the dimensions and configuration of this specific build.
