ELECTRIC MOTOR 24V 470W 1400Rpm Mec90 B14 S2 L Series

L-Series permanent magnet DC electric motor, MEC90 construction with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 24 V DC
• Power: 470 W
• Speed: 1400 RPM
• Rated torque: 3.21 Nm
• Current consumption: 25.40 A
• Size: MEC90
• Flange: B14
• Series: L

Available configurations

• Standard S2 duty
• Ventilated S1 continuous duty, with a €30.00 surcharge
• Standard output with pins; output cables or terminal block also available at no extra charge

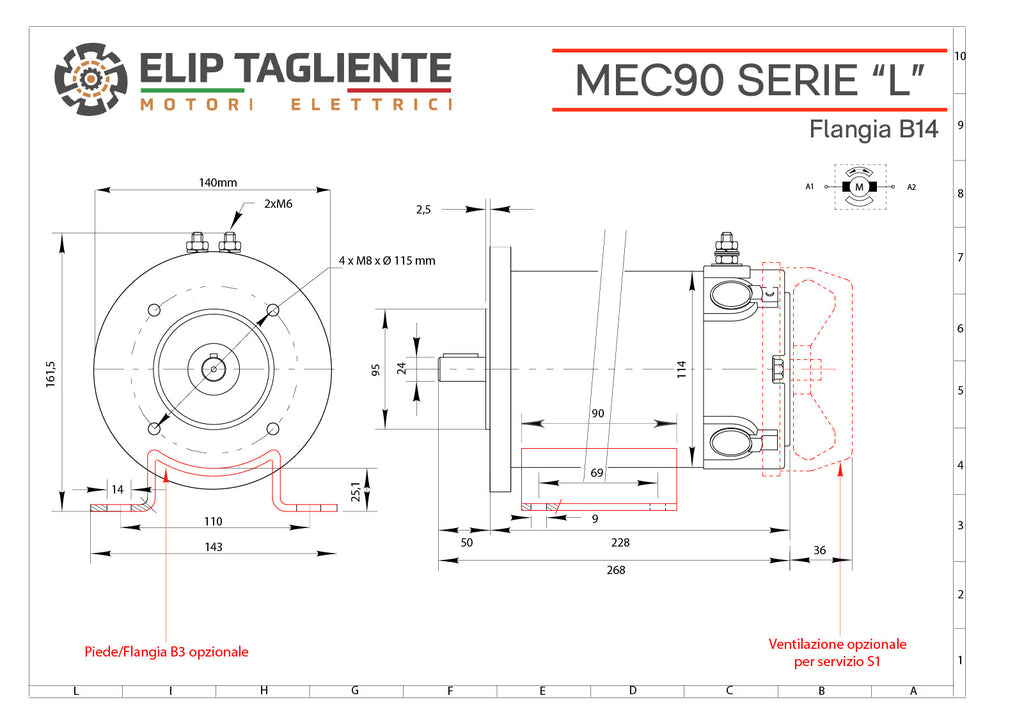

The attached technical drawing identifies the dimensions and mounting specifications of this particular build.
