12V 470W 1400Rpm ELECTRIC MOTOR Mec80 B14 S2 L Series

L-series permanent magnet DC electric motor, MEC80 construction with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 12 V DC
• Power: 470 W
• Speed: 1400 RPM
• Rated torque: 3.21 Nm
• Current consumption: 51.00 A
• Frame size: MEC80
• Flange: B14
• Series: L

Available configurations

• Standard S2 duty
• Ventilated S1 continuous duty, with a €30.00 surcharge
• Standard output with pins; cable output or terminal board also available at no extra charge

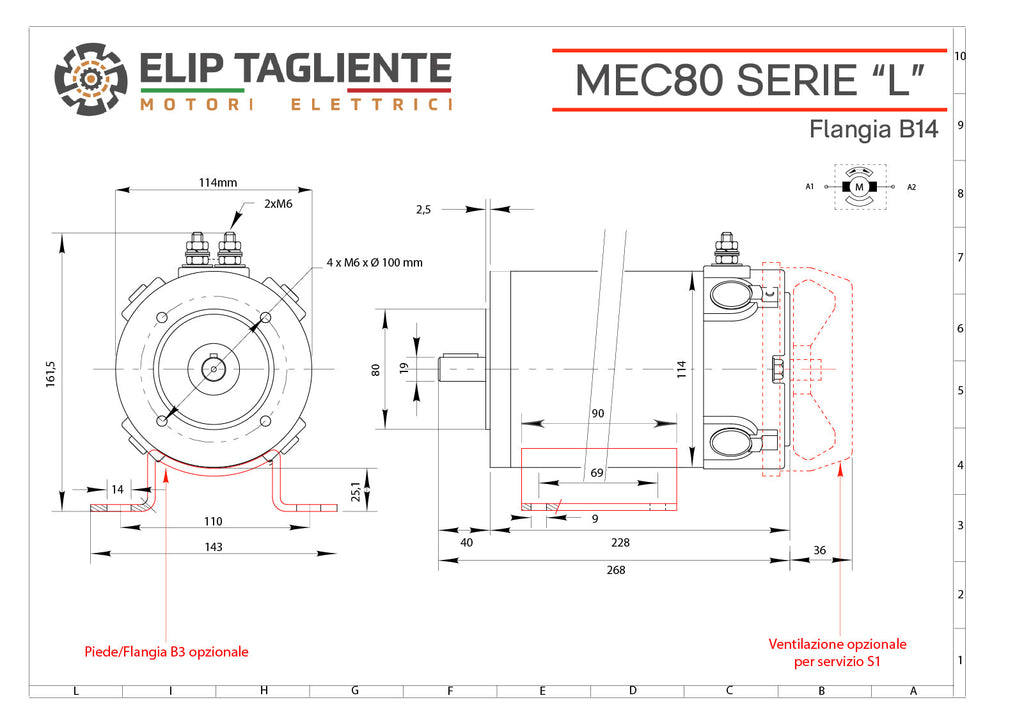

The attached technical drawing identifies dimensions and configurations for this specific construction.
