12V 450W 1800RPM ELECTRIC MOTOR MEC90 B5 S2 SERIES E

E-Series permanent magnet DC electric motor, MEC90 construction with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 12 V DC
• Power: 450 W
• Speed: 1800 RPM
• Rated torque: 2.39 Nm
• Current consumption: 48.70 A
• Frame size: MEC90
• Flange: B5
• Series: E

Available configurations

• Standard S2 duty
• Ventilated continuous S1 duty, with surcharge
• Standard output with pins; output cables or terminal block also available at no extra cost

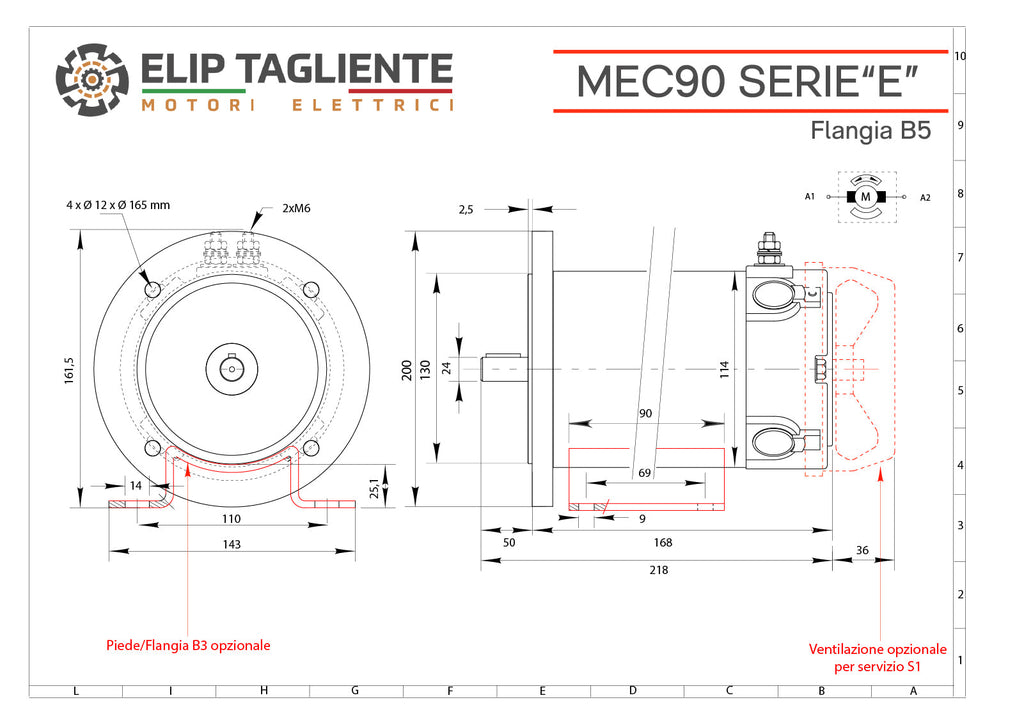

The attached technical drawing identifies the dimensions and mountings of the specific construction.
