12V 820W 2800RPM ELECTRIC MOTOR IEC63 B5 S2 M SERIES

M-series permanent magnet DC electric motor, MEC63 frame with B5 flange. Manufactured by Elip Tagliente.

Technical data sheet

• Rated voltage: 12 V DC
• Power: 820 W
• Speed: 2800 RPM
• Rated torque: 2.80 Nm
• Current consumption: 88.80 A
• Frame size: MEC63
• Flange: B5
• Series: M

Available configurations

• Standard S2 duty
• Ventilated S1 continuous duty, with a €30.00 surcharge
• Standard output with pins; output cables or terminal block also available at no extra cost

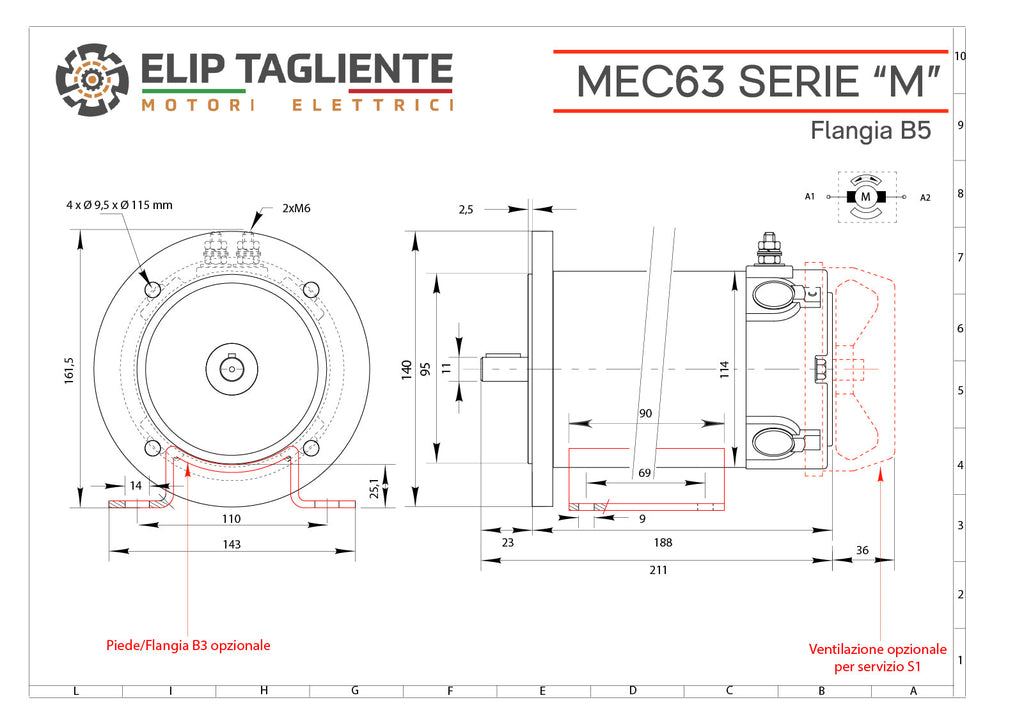

The attached technical drawing identifies the dimensions and mounting specifications for this particular build.
