24V 940W 2800RPM ELECTRIC MOTOR Mec71 B5 S2 L Series

L-Series permanent magnet DC electric motor, MEC71 frame with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 24 V DC
• Power: 940 W
• Speed: 2800 RPM
• Rated torque: 3.21 Nm
• Current draw: 50.90 A
• Frame size: MEC71
• Flange: B5
• Series: L

Available configurations

• Standard S2 duty
• Ventilated S1 continuous duty, with a surcharge of €30.00
• Standard output with pins; output cables or terminal block also available at no extra charge

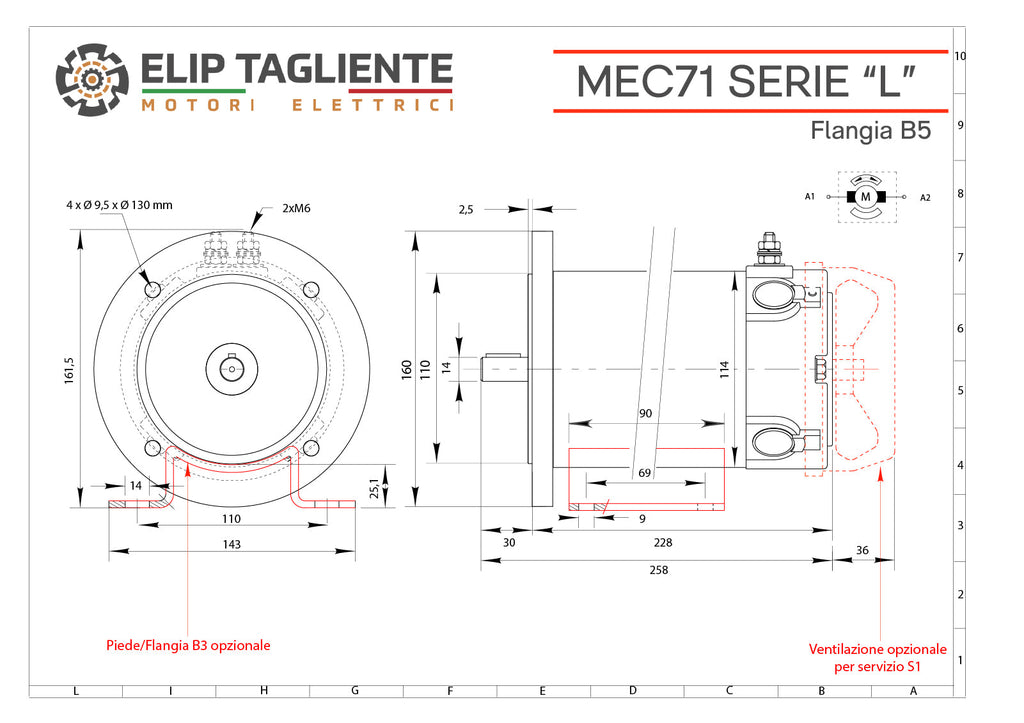

The attached technical drawing specifies the dimensions and mounting configurations for this specific build.
