12V 840W 3500 rpm electric motor, Mec71 B14 S2 Series E

Series E permanent-magnet DC electric motor, MEC71 construction with B14 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 12 V DC
• Power: 840 W
• Speed: 3500 RPM
• Rated torque: 2.29 Nm
• Current draw: 91.00 A
• Frame size: MEC71
• Flange: B14
• Series: E

Available configurations

• Standard S2 duty
• S1 continuous duty, fan-cooled, at an additional cost
• Standard output with pins; output cables or terminal block also available at no extra cost

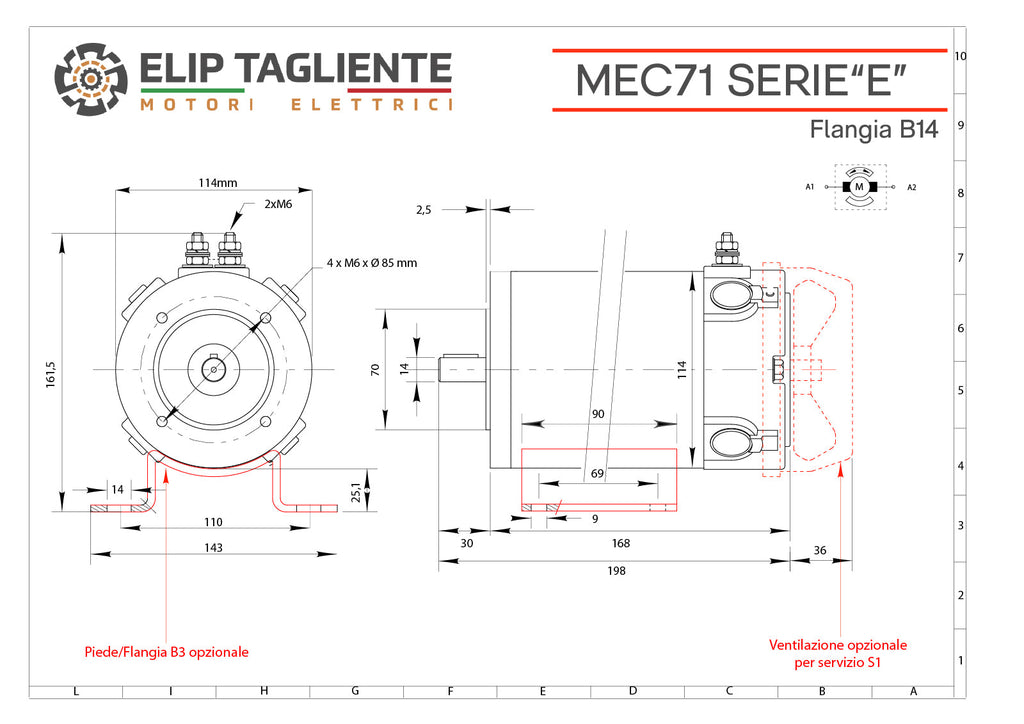

The attached technical drawing shows the dimensions and mounting provisions for this specific configuration.
