36V 220W 1500RPM ELECTRIC MOTOR Mec63 B5 S2 D Series

D-series permanent magnet DC electric motor, MEC63 construction with B5 flange. Manufactured by Elip Tagliente.

Technical specifications

• Rated voltage: 36 V DC
• Power: 220 W
• Speed: 1500 RPM
• Rated torque: 1.40 Nm
• Current consumption: 7.90 A
• Size: MEC63
• Flange: B5
• Series: D

Available configurations

• Standard S2 duty
• Continuous S1 duty ventilated, with surcharge
• Standard output with pins; output cables or terminal block also available at no extra charge

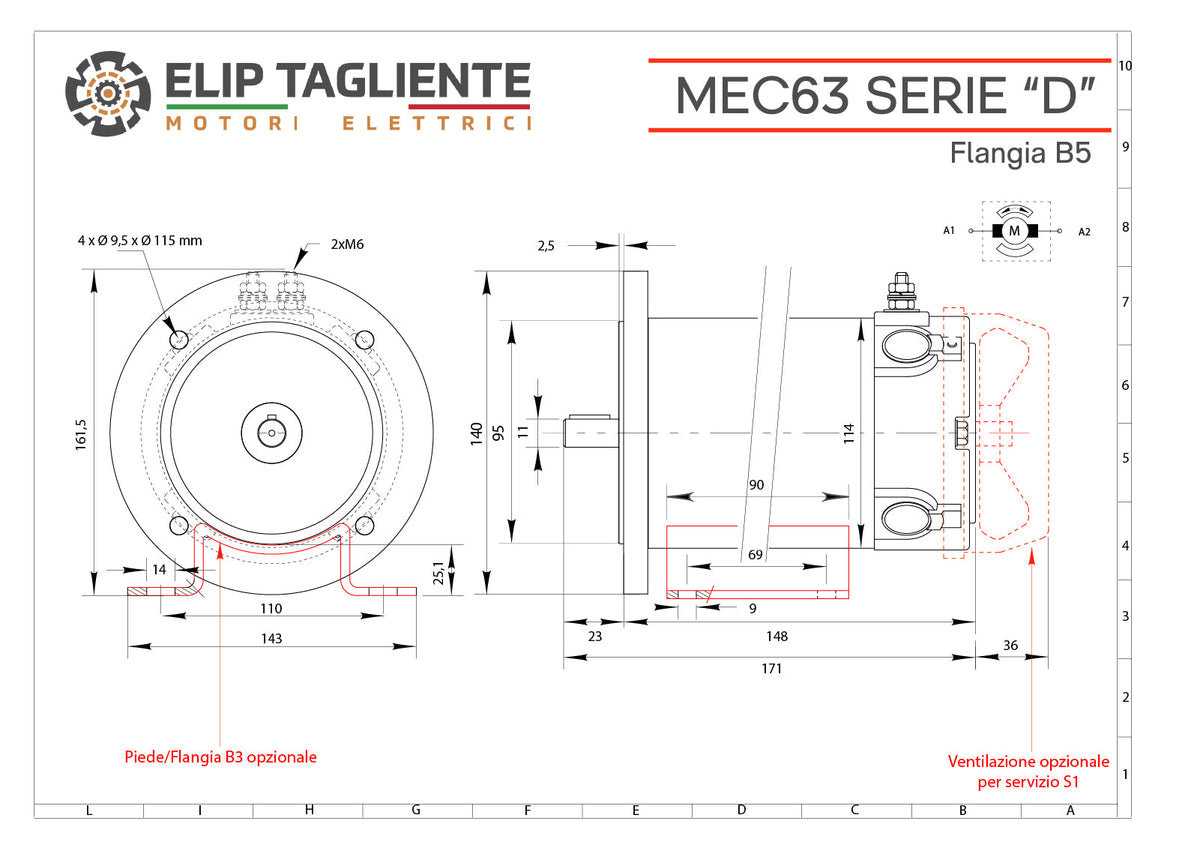

The attached technical drawing identifies the dimensions and configuration of the specific build.
